Spot Quality Flat Pack Homes: 15 Key Differences You Must Check!

Choosing a flat pack container house? Don’t be fooled by looks. True quality lies in the details. Here’s your expert guide to spotting superior construction across 15 critical areas:

I. Bottom Beams: The Foundation of Strength

• Steel Grade: Premium beams use high-strength Q345 steel (superior load-bearing) vs. ordinary Q235 steel.

• Profile Section: 445mm total unfolded length = greater stability. Ordinary beams: 350mm (95mm shorter).

• Thickness: 3.0mm thick steel ensures longevity. Ordinary: 2.0mm–2.5mm (prone to bending).

vs.

II. Bottom Secondary Beams: Hidden Support Matters

• Quality: Wide C-shaped beams maximize material use and rigidity.

• Ordinary: Thin square tubes offer weaker support.

vs.

III. Columns: The Backbone

• Quality: Q345 steel, 2.5mm thick, with stiffener plates. Size: 210*150mm.

• Ordinary: Q235 steel, 2.0mm thick. Size: 150*150mm (less stable).

vs.

IV. Top Beams: Roof Reliability

1. Steel: Q345 high-strength steel.

2. Width: 180mm (distributes load evenly) vs. ordinary 160mm.

3. Thickness: 2.5mm steel vs. ordinary 1.8mm–2.0mm.

4. Secondary Beams: 7 top secondary beams prevent sagging. Ordinary: only 3–5.

 vs.

V. Frame: Finish That Lasts

• Quality: Powder coating resists rust/chipping for 5+ years.

• Ordinary: Spray paint peels quickly, inviting corrosion.

vs.

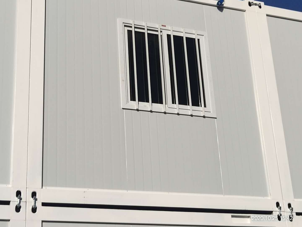

VI. Wall Panels: Durability Inside & Out

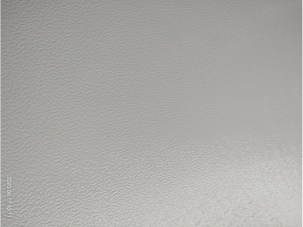

• Quality: Exterior: 0.376mm orange-peel texture color steel (scratch-resistant). Interior: 0.326mm smooth panel.

• Ordinary: Basic 0.326mm smooth panels (less durable/attractive).

vs.

VII. Base Frame: The Unseen Critical Layer

1. Main Beams: 3.0mm Rolla beams + 100g SGH340 galvanization (anti-corrosion). Ordinary: 2.5mm bent beams + 80g Q235 galvanization.

2. Secondary Beams: 9 C-shaped beams (120mm*1.0mm) + 2 reinforcing angle irons (reduces vibration). Ordinary: 9 thin square tubes (100mm50mm1.4mm), no reinforcement.

vs.

VIII. Stairs: Safety in Details

1. Treads: Anti-slip PVC flooring strips (secure footing). Ordinary: None.

2. Handrail: 304 stainless steel (high corrosion resistance). Ordinary: 301 stainless steel.

3. Walkway Plate: 2.75mm thick steel vs. ordinary 2.0mm.

vs.

IX. Drainage: Keep Water Out

• Quality: Integrated wall flashing channels direct rainwater away.

• Ordinary: Thin materials, no drainage channels (leak risk).

vs.

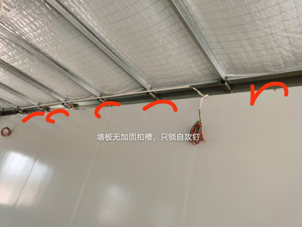

X. Wall Reinforcement: Stability Upgrade

• Quality: Galvanized clamping channels lock wall panels firmly.

• Ordinary: Only self-tapping screws (walls may loosen).

vs.

XI. Connections: Precision Engineering

1. Interlocking: Precision-aligned screw holes for tight assembly. Ordinary: Misaligned holes, poor fit.

2. Column Reinforcement: Reinforcing gussets at columns for rigidity. Ordinary: None.

XII. Roof: Your Shield Against Elements

1. Structure: 7 secondary beams (100*50*1.6) + 3x 6m purlins (20*20) = stormproof. Ordinary: 5 weak beams (80*50*1.5), no purlins.

2. Insulation: 100mm glass wool + vapor barrier (14kg/m³ density). Ordinary: Just 40mm insulation.

3. Ceiling Structure: Robust internal framing. Ordinary: Under-supported.

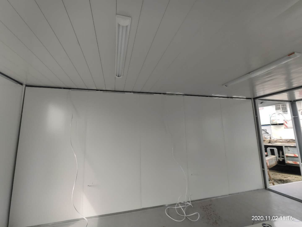

XIII. Ceiling: Hidden Quality

1. Material: 193*2850 color steel, full 0.5mm thickness, machine-formed with hidden fasteners.

2. Panel: 0.5mm single-color tile, factory-seamed. Ordinary: 0.326mm thin panels (831-type).

XIV. Flooring: Comfort & Longevity

1. Base: 18mm cement fiberboard (waterproof, anti-sag). Ordinary: Non-waterproof "fake cement board" (sags over time).

2. Flooring: 1.8mm PVC, 0.2mm UV wear layer (lasts 5–10 years). Ordinary: 0.1mm wear layer (lasts 3–4 years).

XV. PVC Flooring: No More Bubbles!

• Quality: 1.6mm non-woven backed PVC. Non-woven layer prevents bubbles, improves comfort.

• Ordinary: Basic non-backed PVC (bubbles easily, poor adhesion).

The Takeaway:

Quality isn’t about price—it’s in the steel thickness, the reinforcement others skip, and the weatherproofing details. Use these 15 checkpoints to see beyond the surface. When durability matters, the right choices speak for themselves.
