Προκατασκευασμένο δομοστοιχειωτό επεκτάσιμο σπίτι κοντέινερ 20 ποδιών

Προκατασκευασμένο αρθρωτό επεκτάσιμο σπίτι κοντέινερ 20 ποδιών είναι ένα φιλικό προς το περιβάλλον και οικονομικό αρθρωτό σπίτι, χτισμένο με δομή από ελαφρύ χάλυβα ως σκελετό, πλήρη χρήση της αντοχής των πάνελ σάντουιτς από χάλυβα χρώματος και των πάνελ οροφής. Συναρμολογείται με οποιονδήποτε συνδυασμό των τυπικών μονάδων μέσω σύνδεσης μπουλονιών, μπορεί να συναρμολογηθεί και να αποσυναρμολογηθεί εύκολα και γρήγορα.

Αρ :

T-021

Παραγγελία (MOQ) :

1 set

Πληρωμή :

50% deposite,50% before shipment

Προέλευση προϊόντος :

Guangdong province

Χρώμα :

customized

Λιμάνι ναυτιλίας :

Nansha port

Χρόνος ανοχής :

20-25 days

Βάρος :

4000KG

Basic Info

SPECIFICATION OF 20FT EXPANDABLE CONTAINER HOUSE

DIMENSIONS & CAPACITY
LOADING SIZE (L × W × H)	5900 × 2200 × 2480 MM	EXPANDED SIZE (L × W × H)	5900 × 6300 × 2480 MM
WEIGHT	4000 KG	ORDER (MOQ)	1 SET
PERFORMANCE INDEX
THERMAL INSULATION	λ = 0.048 W/(M·K)	WIND RESISTANCE	0.60 KN/M²
SOUND INSULATION	≥ 30 DB	FIRE PERFORMANCE	CLASS A
FLOOR LOAD	2.0 KN/M²	ROOF SNOW LOAD	0.9 KN/M²
SEISMIC PERFORMANCE	GRADE 8	WATERPROOF PERFORMANCE	ORGANIZED DRAINAGE; NO LEAKAGE AT 16 MM/MIN PRECIPITATION
MAIN STRUCTURE
SUSPENSION HEAD	210 × 150 × 160 MM, FULLY GALVANIZED
GROUND MAIN BEAM 1	80 × 100 MM GALVANIZED SQUARE STEEL, 2.5 MM THICK
GROUND MAIN BEAM 2	180 MM SPECIAL-SHAPED GALVANIZED C-SECTION STEEL, 2.5 MM THICK
GROUND SECONDARY BEAM	9 GALVANIZED SQUARE TUBES OR C-SECTION STEEL, 60 × 40 × 1.8 MM
COLUMN	210 × 150 MM GALVANIZED STEEL, 2.5 MM THICK
ROOF MAIN BEAM 1	80 × 100 MM GALVANIZED SQUARE STEEL, 2.5 MM THICK
WATERPROOF SYSTEM
JOINT SEALING	D-TYPE RUBBER STRIPS FOR EACH MOVABLE JOINT; BUTYL WATERPROOF TAPE

Detailed Photos

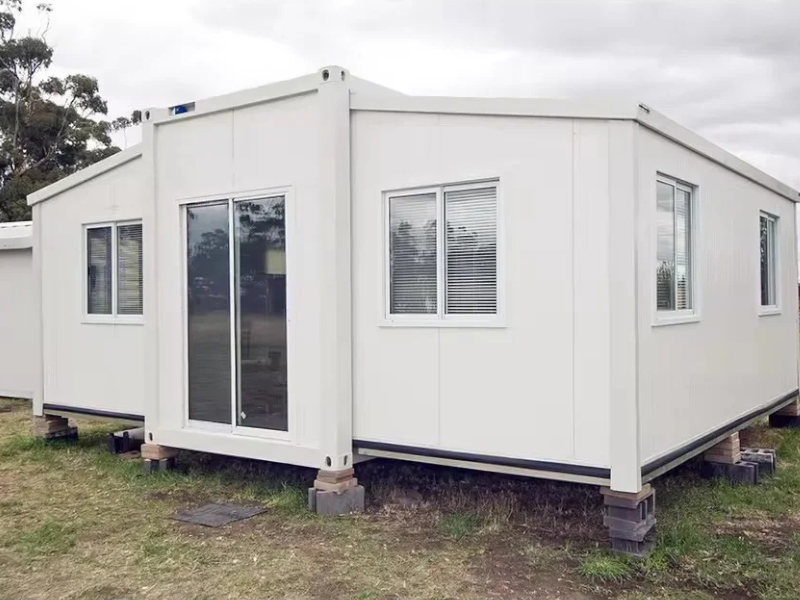

On-Site Expansion Installation

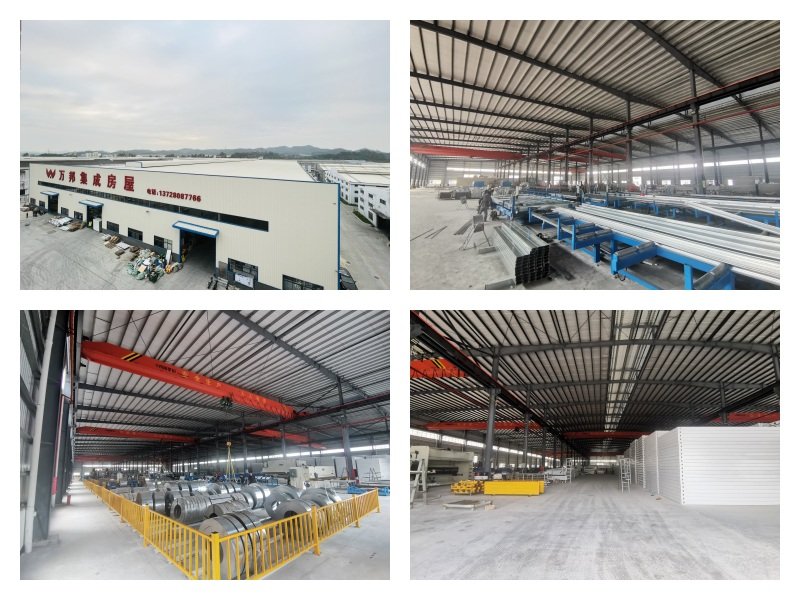

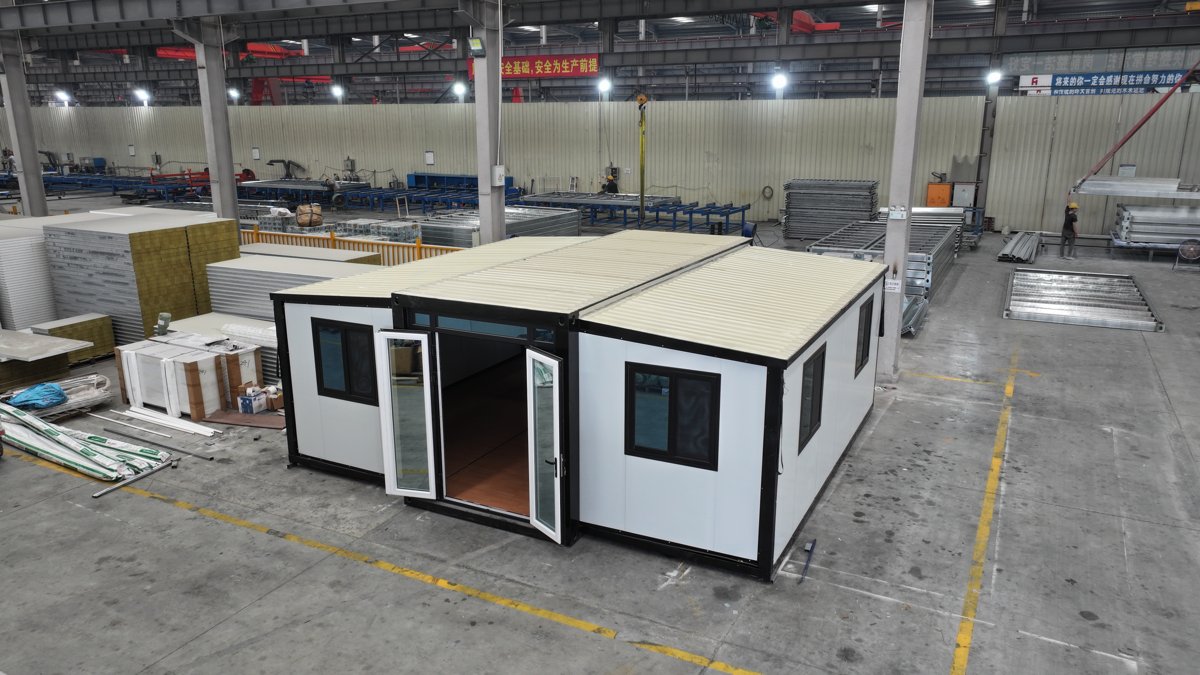

Factory Assembly View

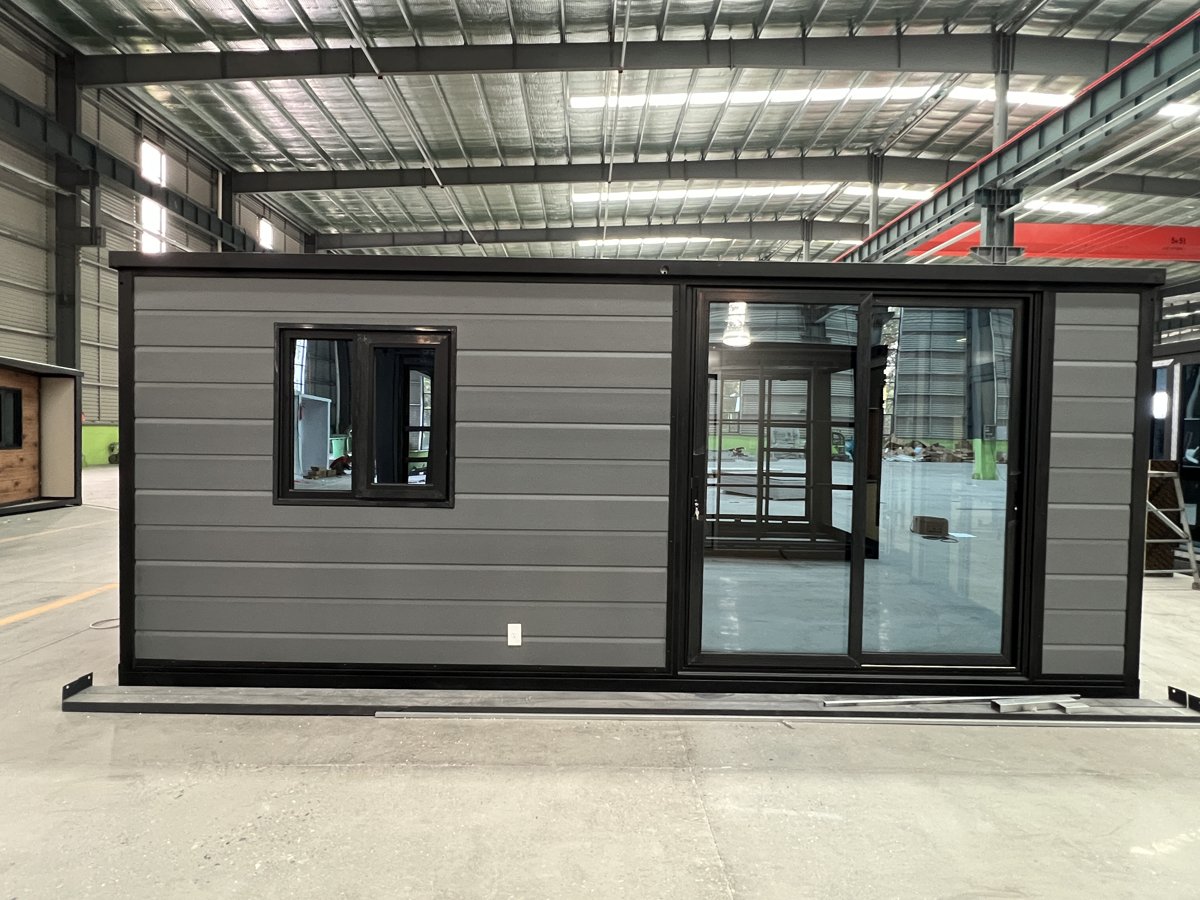

Gray Exterior Finish

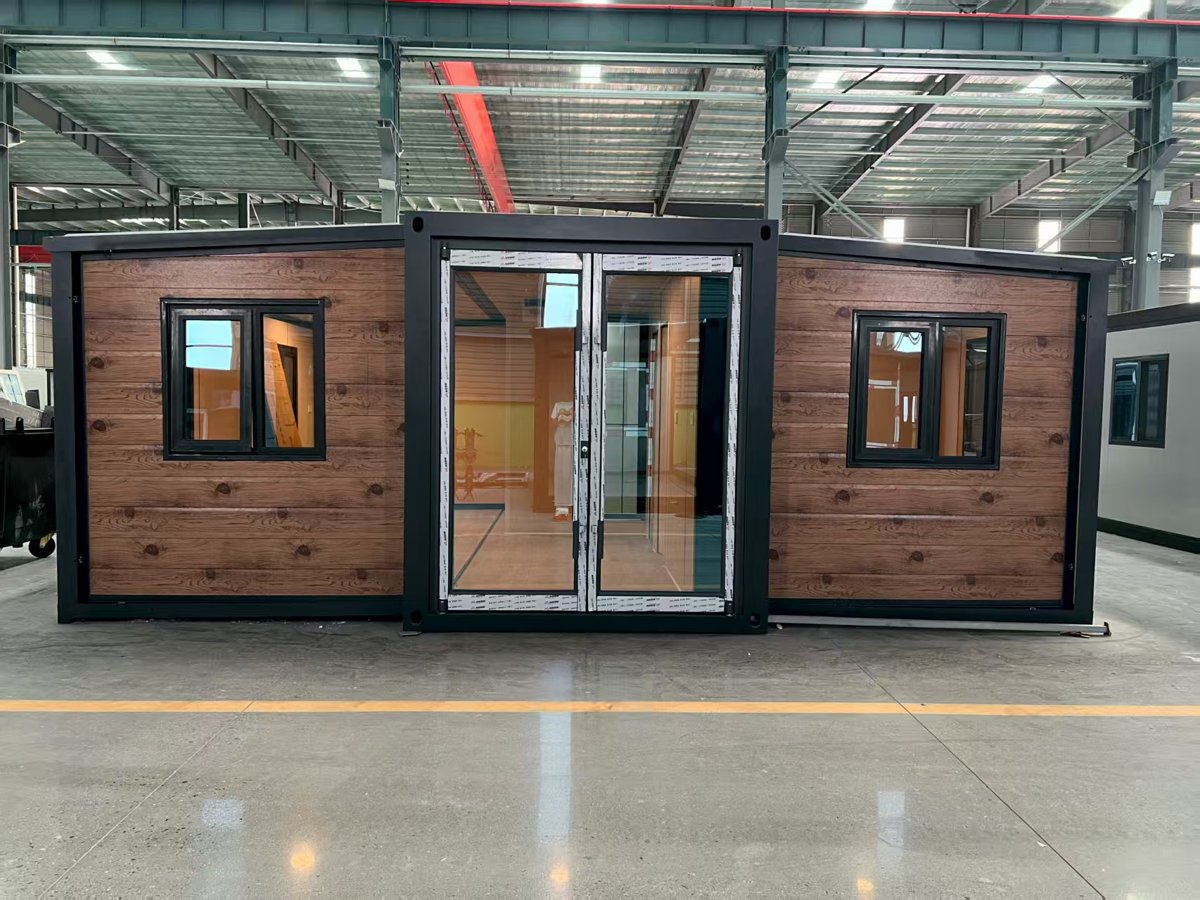

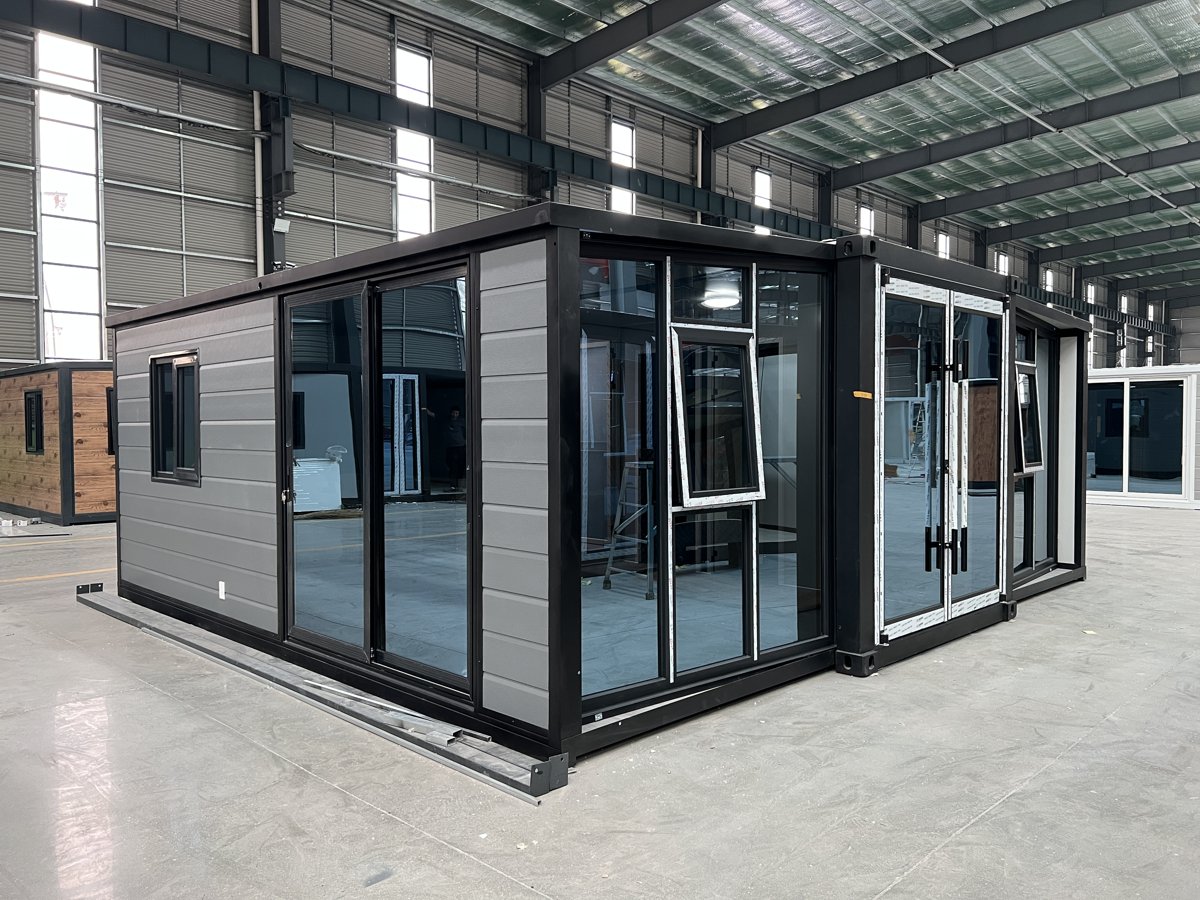

Floor-to-Ceiling Window Customization

Exterior Cladding

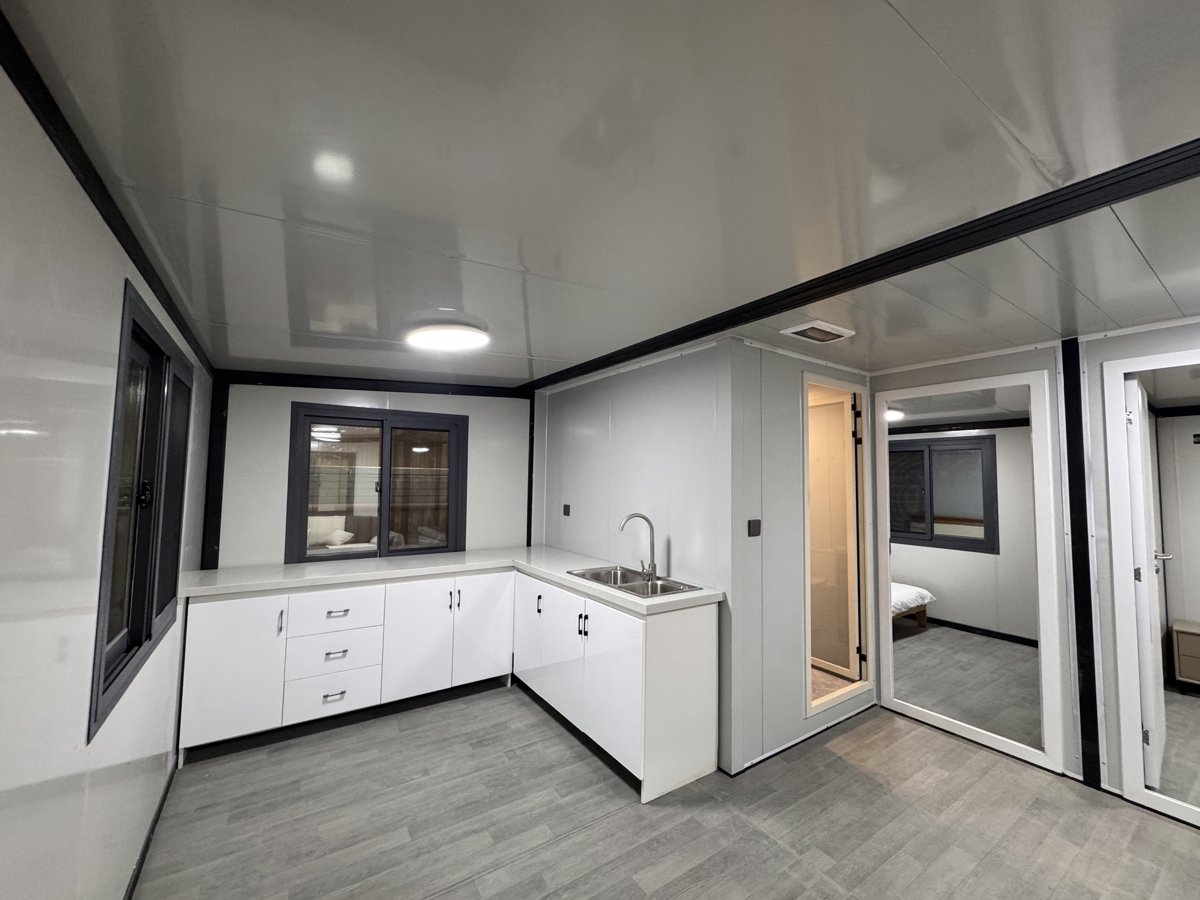

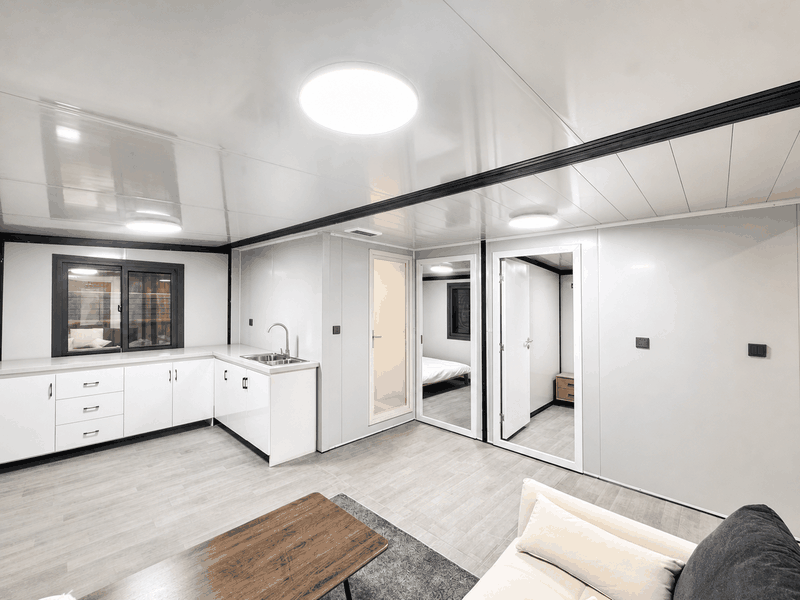

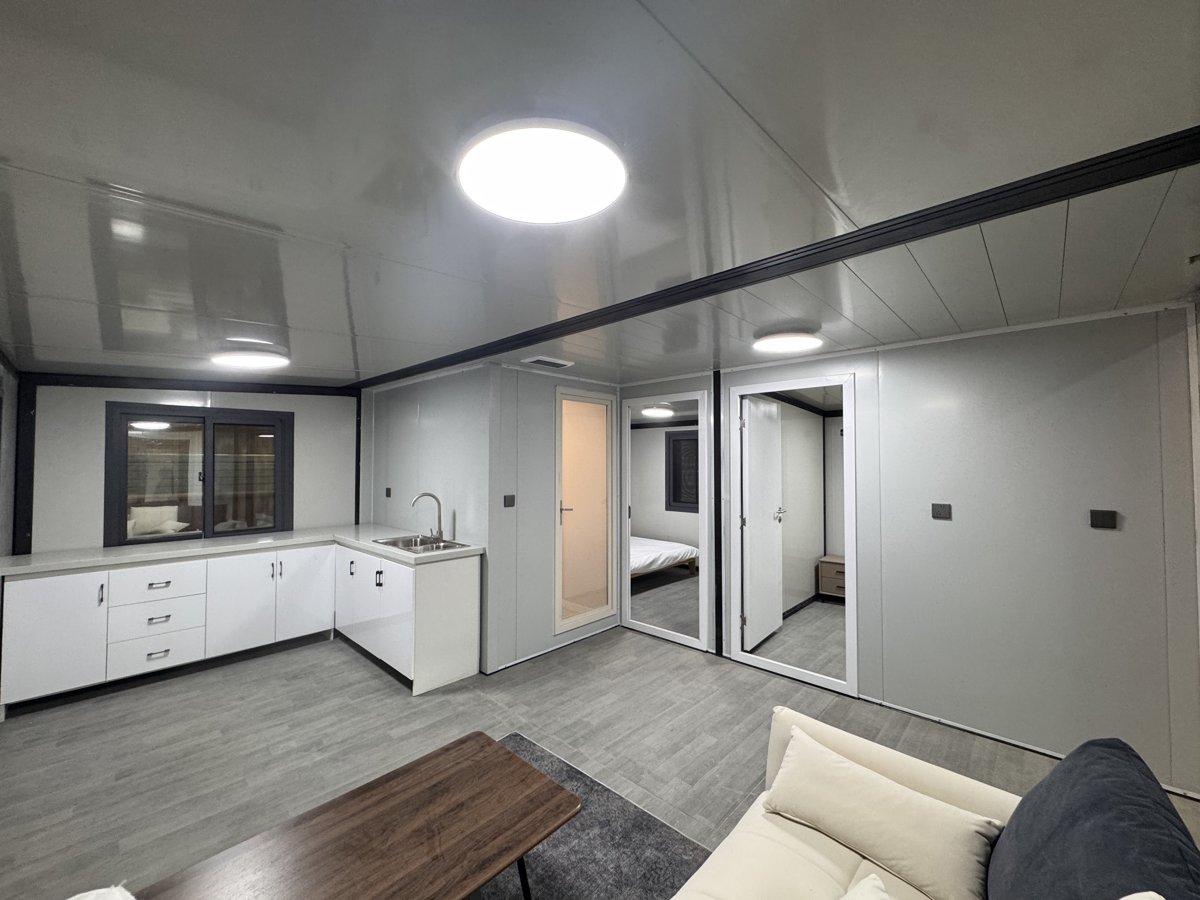

Finished Interior Living Area

20ft Double-Wing Layout Diagram

The original Chinese structure breakdown image has been translated into English while keeping the diagram structure unchanged.

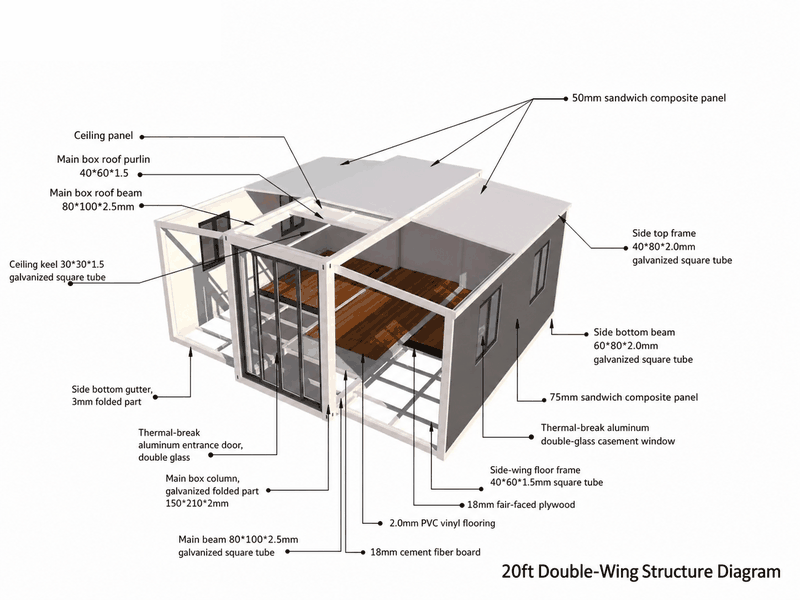

20ft Double-Wing Structure Diagram in English

Product Interior Picture

Layout	Suitable Use
2 Bedrooms + Bathroom + Living Room + Kitchen	Small-family housing, staff accommodation, rental cabins
Occupancy	2-3 person
Kitchen	Standard kitchen cabinet with sink and faucet reference
Bathroom	Toilet, shower, wash basin, mirror cabinet and piping reference

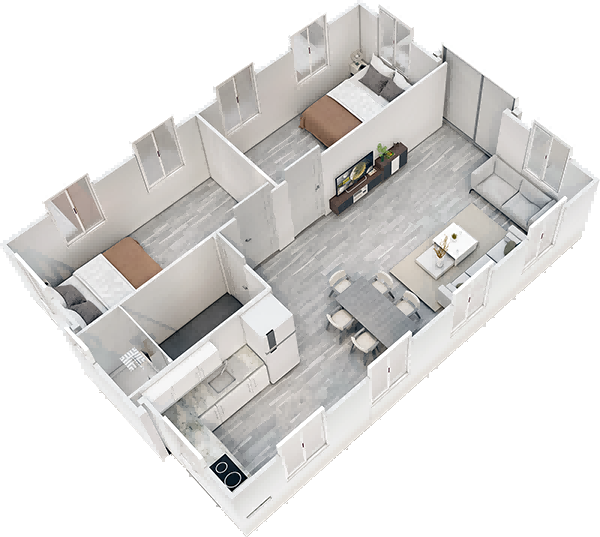

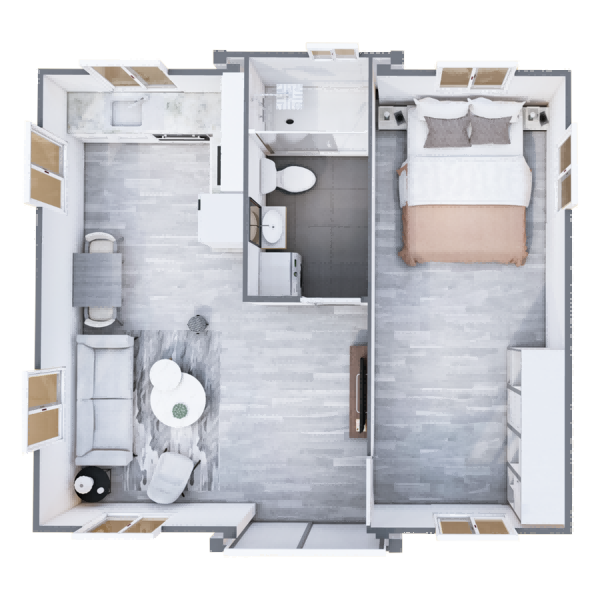

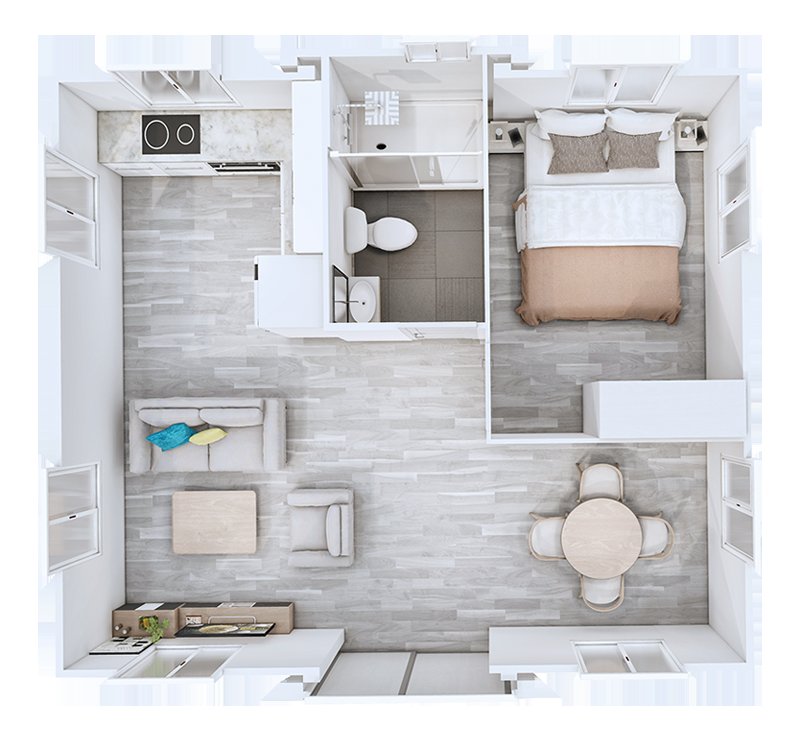

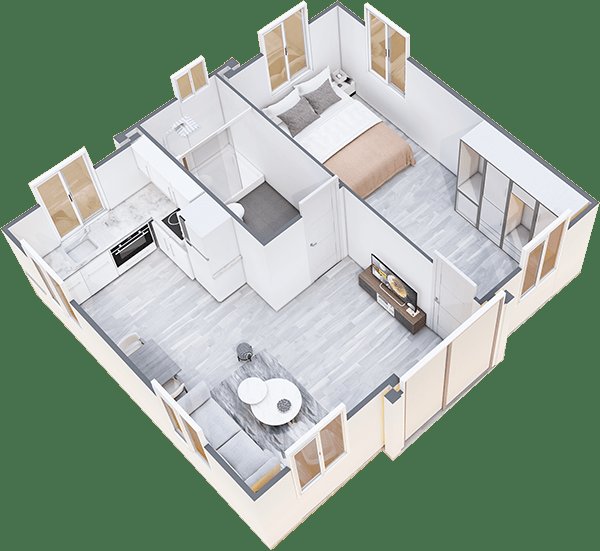

3D Layout Reference

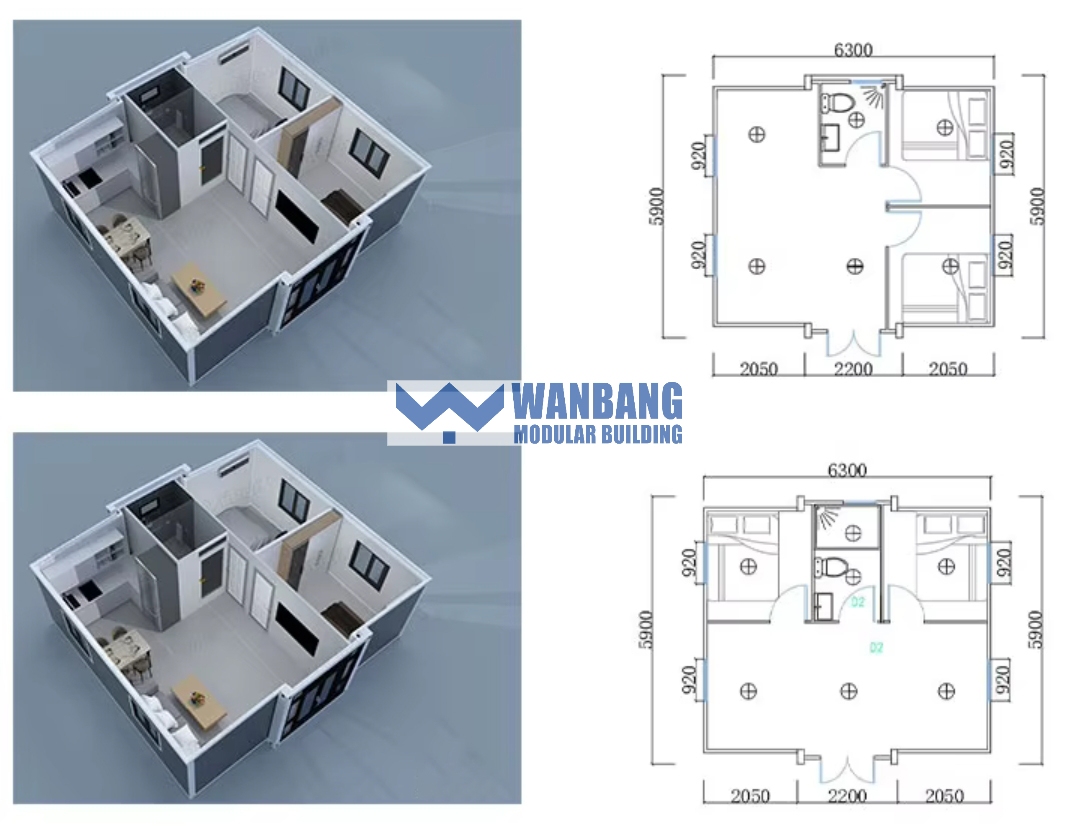

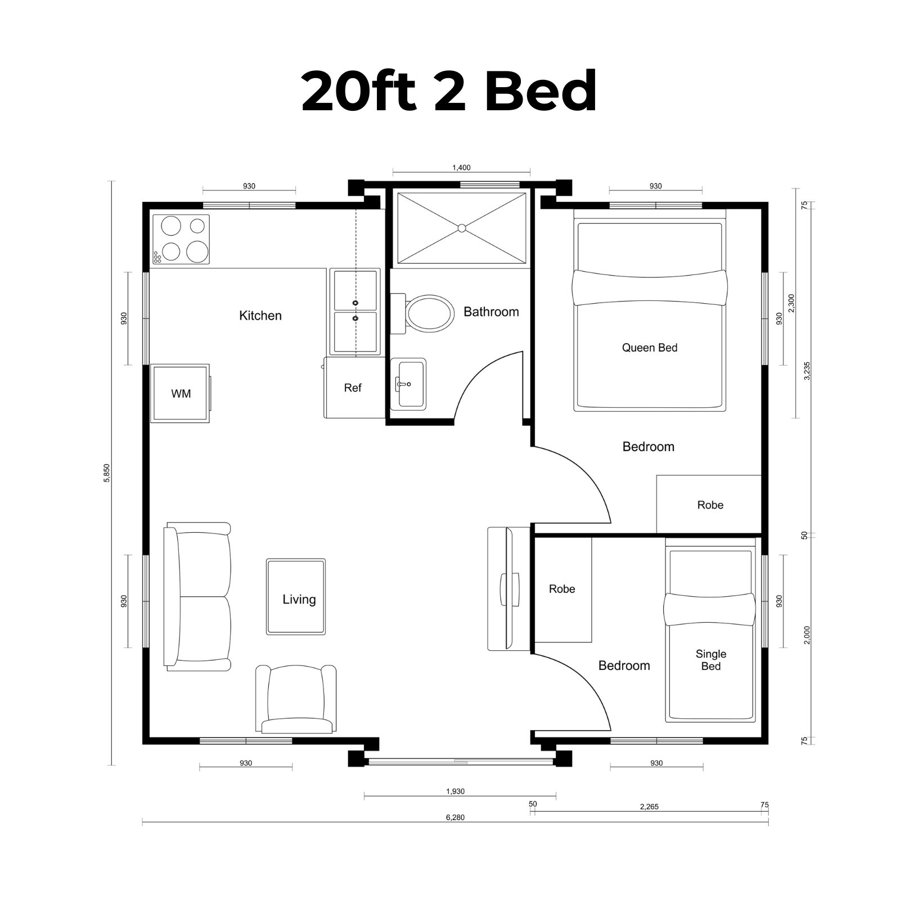

20ft 2 Bedroom Floor Plan

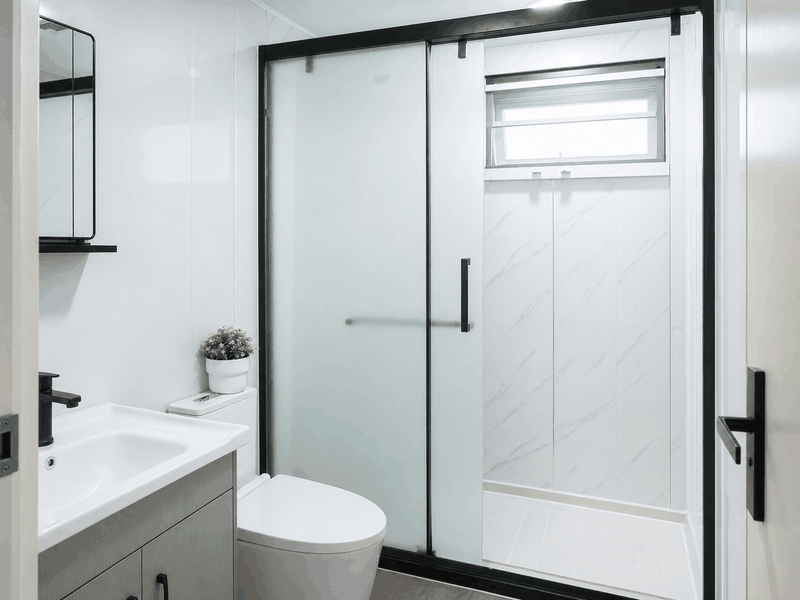

Bathroom Interior Reference

Living Room / Room Interior Reference

Residential Exterior Rendering

Folded State Before Expansion

Size

Size Item	Parameter
Model	20ft Expandable House Basic Model - Pitch Roof
Original Page Loading Size	590022002480mm
Overall Dimensions	L5900W6300H2480mm
Expanded Size	L5900W6300H2480
Internal Size	L5800W6000H2200
Folded Size	L5900W2200H2480
Area	37sqm
Current Page Weight	4000KG
Excel Net Weight	3.5 Tons
Maximum Power Load	12KW
Loading Capacity	2 units per 40HC

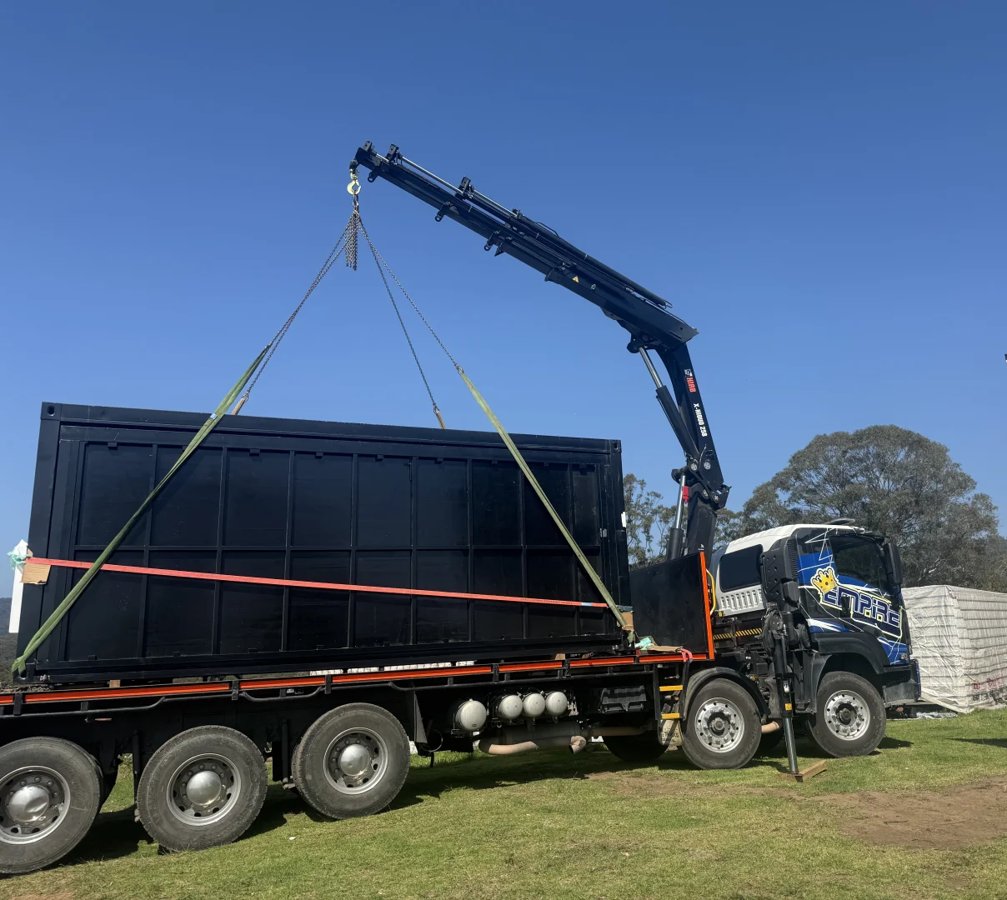

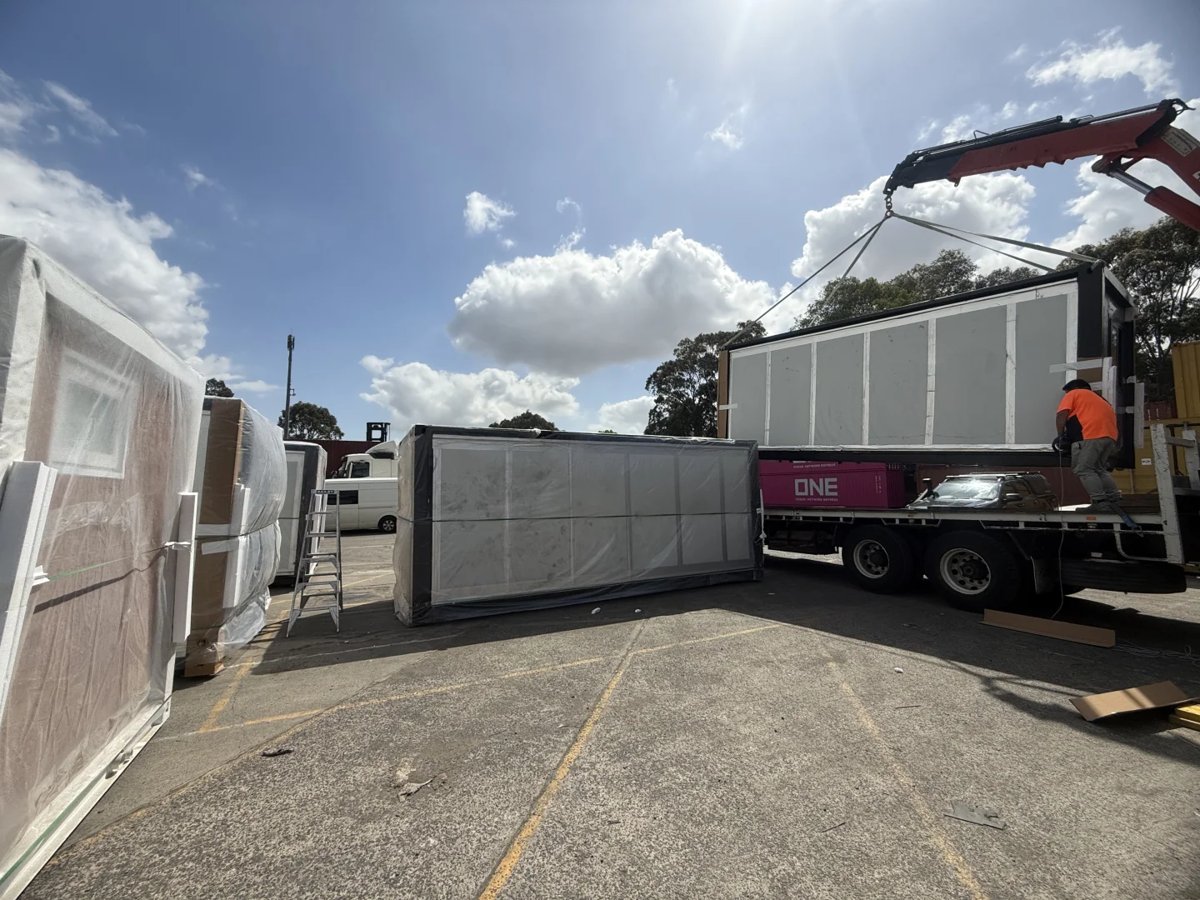

Loading and Installation Reference

Reference	Parameter
Loading Capacity	40HC: 2 units

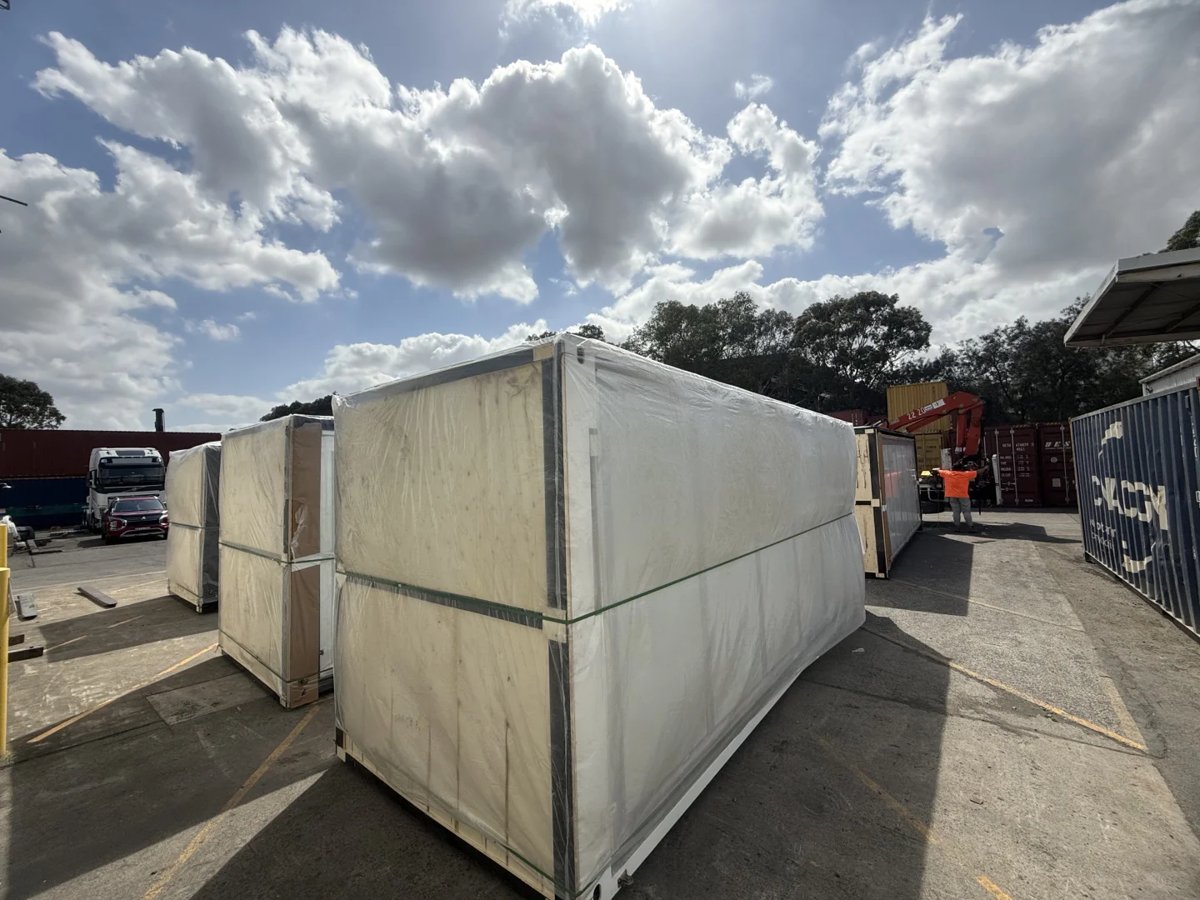

Delivery Form	Folded expandable unit for container shipping and site lifting
Site Handling	Truck unloading, crane lifting and positioning
Installation Method	Open both wings, fix roof/floor/wall connections, then connect utilities

Frame

Component	Material / Specification
Main Structure	Fully galvanized
Roof Main Beam	80803.0mm galvanized square tube
Roof Cross Beam	2.0mm galvanized folded steel
Floor Main Beam	1001003.0mm galvanized square tube
Floor Cross Beam	1001003.0mm galvanized square tube
Columns & Lifting Points	3.0mm folded steel
Top Side Folding Frame	40801.5mm P-shaped tube / 40801.5mm square tube / 2.0mm folded steel
Bottom Side Folding Frame	40601.5mm square tube / 80803mm square tube
Folding Hinges	13mm galvanized steel hinges
Frame Coating	Electrostatic powder coating

Wall, Roof and Insulation

Component	Material / Specification
External Central Roof	1.0mm thick steel sheet
Interior Roof Panel	50mm EPS sandwich panel
Ceiling Panel	50mm EPS sandwich panel
External Wall Panel	50mm EPS sandwich panel, core density 12kg/m3, both sides with 0.35mm color-coated steel
Interior Partition Panel	50mm EPS sandwich panel

Floor, Doors, Windows and Electrical

Component	Material / Specification
Central Floor	18mm fiber cement board
Side Floor Panels	18mm fireproof magnesium oxide (MgO) board
Surface Flooring	4mm SPC flooring timber style
Main Entrance Door	Broken bridge aluminum door
Windows	Aluminum sliding windows, size: 930*930mm
Bedroom Door	Steel door
Circuit Breakers	1 leakage protector (RCD), 4 miniature circuit breakers (MCBs)
Lighting	LED round ceiling lights
Wiring	Main cable: 6mm2; water heater: 6mm2; kitchen sockets: 4mm2; AC sockets: 4mm2; general sockets: 2.5mm2; lighting: 1.5mm2

Kitchen and Bathroom

Area	Configuration
Kitchen	Standard L-shaped kitchen cabinet with sink and faucet
Bathroom	Partition panel, shower set, wash basin, toilet, mirror, cabinet, sliding shower door, floor drain, water supply and drainage piping

Product Advantages

20ft expandable layout
Suitable for small housing, office and accommodation projects.

Clear shipping data
Folded size and 40HC loading quantity help estimate logistics cost.

Material list included
Frame, wall, floor, doors, windows and electrical specifications are tabled for buyer review.

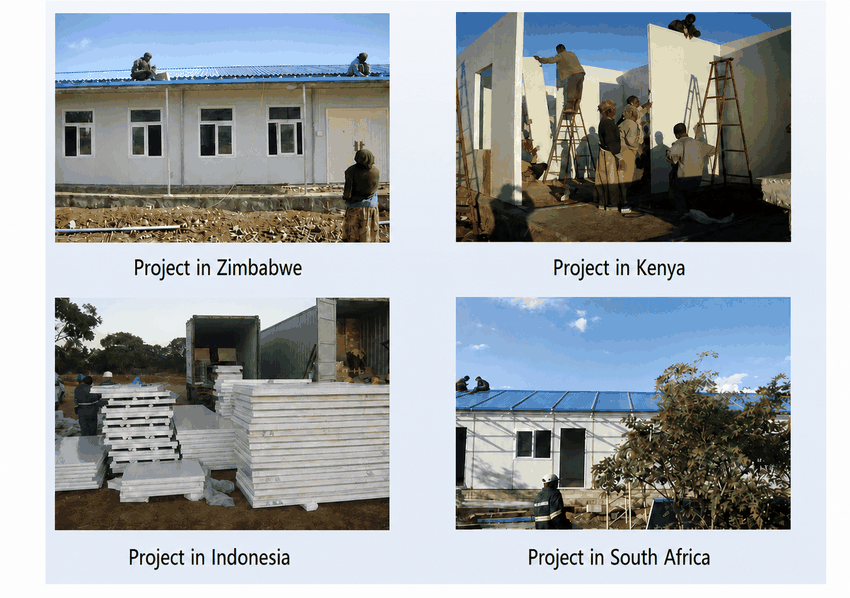

Project reference
Overseas project images support buyer confidence for modular building procurement.

FAQ

What is the MOQ?

At least 1 unit.

What is the production lead time?

The original page lists 10-15 days. The matched 20ft BasicModel sheet lists 20 days; final lead time should follow order quantity and configuration.

Can the layout be customized?

Yes. Wanbang can customize layout, color, doors, windows, electrical standard, kitchen and bathroom configuration according to project requirements.

What is the payment method?

The original page lists 50% deposite and 50% before shipment.
